Salient Features of LED STREET LIGHTS (Heavy Duty):

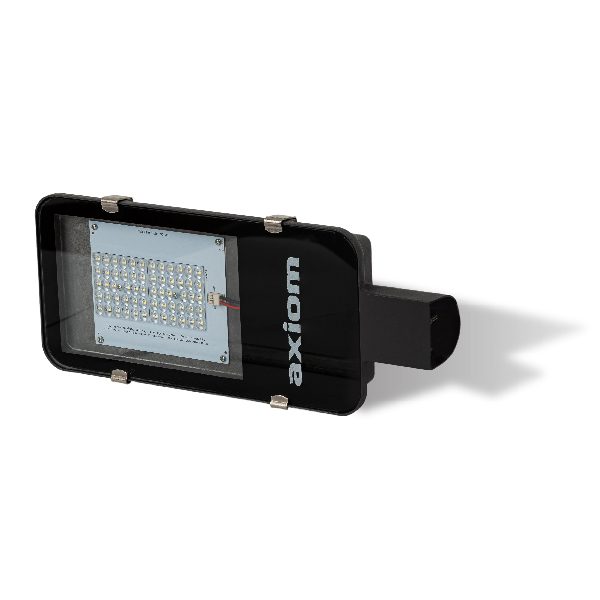

One key feature of Axiom’s LED street lights is their high CRI, which renders colors realistically, benefiting both drivers and pedestrians. Additionally, these lights are constructed with heavy-duty aluminum extrusion casings, ensuring structural durability and efficient heat dissipation. This robust construction makes them resilient against environmental factors, such as rain and snow, as well as physical wear and tear, guaranteeing long-lasting, reliable performance on the streets. Axiom’s LED street lights contribute significantly to safer road conditions and improved visibility, ultimately serving as a vital element of modern urban and rural infrastructure.
Specifications of LED STREET LIGHTS (Heavy Duty):
| Model | Luminare | Driver | Luminaire | ||||||||||||||
| Lumens | Efficieny (Lumens Per watt) | CCT | CRI | Operating Voltage range | Output Voltage | Output current | T.H.D | P.F. | Driver efficiency | No Load Voltage | Internal Surge | Open Voltage/ Under Voltage protection | Output Short Circuit Protection | Output Open Circuit Protection | AC Isolation | ||
| High Cut off | Low Cut off | ||||||||||||||||
| 24W | 2.3K-2.5K | 100 lm/watt | 3000K, 6500K | >75 | 100V-300V | 36V | 600mA(max) | <10% | >0.9 | >85% | 54 V(max) | 4KV | >280V | <100V | Yes | Yes | Yes |
| 30W | 2.8K-3.2K | 100 lm/watt | 3000K, 6500K | >75 | 100V-300V | 36V | 700mA(max) | <10% | >0.9 | >85% | 54 V(max) | 4KV | >280V | <100V | Yes | Yes | Yes |
| 2.8K-3.2K | 100 lm/watt | 3000K, 6500K | >75 | 100V-300V | 42V | 600mA(max) | <10% | >0.9 | >85% | 80 V(max) | 4KV | >280V | – | Yes | Yes | Yes | |
| 45W | 4.2K-4.7K | 100 lm/watt | 3000K, 6500K | >75 | 100V-300V | 48V | 800mA(max) | <10% | >0.9 | >85% | 80 V(max) | 4KV | >280V | – | Yes | Yes | Yes |
| 60W | 5.6K-6.3K | 100 lm/watt | 3000K, 6500K | >75 | 100V-300V | 66V | 800mA(max) | <10% | >0.9 | >85% | 110 V(max) | 4KV | >280V | – | Yes | Yes | Yes |
| 80W | 7.5K-8.5K | 100 lm/watt | 3000K, 6500K | >75 | 100V-300V | 60V | 1.1A(max) | <10% | >0.9 | >90% | 110 V(max) | 5KV | >280V | <100V | Yes | Yes | Yes |
| 100W | 9.5K-10.5K | 100 lm/watt | 3000K, 6500K | >75 | 100V-300V | 78V | 1.1A(max) | <10% | >0.9 | >90% | 110 V(max) | 5KV | >280V | <100V | Yes | Yes | Yes |
| 120W | 11.5K-12.5K | 100 lm/watt | 3000K, 6500K | >75 | 100V-300V | 60V | 1.7A(max) | <10% | >0.9 | >85% | 110 V(max) | 4KV | >280V | – | Yes | Yes | Yes |
