RCCBs aid in guarding against overload and short circuits and protecting against ground faults. They are often located there to safeguard all the circuits connected to the distribution board or consumer unit.
An extensive selection of premium RCCBs created to satisfy the requirements of numerous applications and industries are available at Axiom, a renowned electrical equipment producer in India.

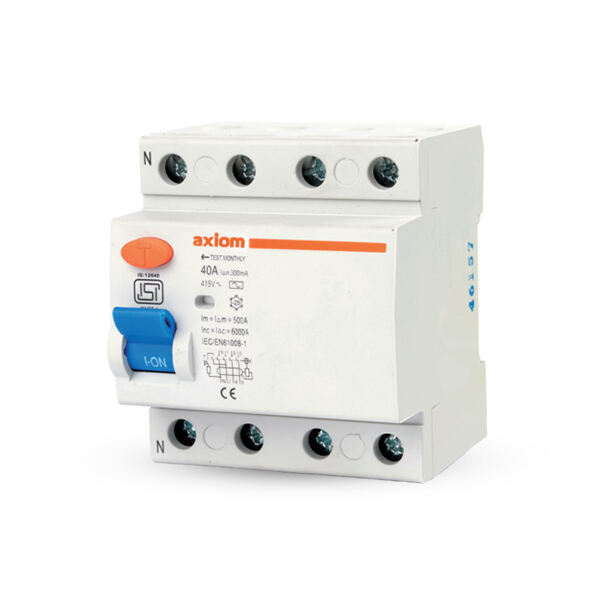

High-quality Residual Current Circuit Breakers are offered in India by Axiom Controls.
SALIENT FEATURES
Our product has standout qualities that make it stand out from competitors. Its sleek and classy appearance will surely draw those who appreciate style and elegance.
Our product’s test button and unambiguous fault trip indication, allowing quick and frequent check-ups, show that safety was prioritized during design. Additionally, IP-20 protection ensures maximum safety under all operational circumstances.
Our product is designed to endure high short-circuit circumstances in addition to its safety features. The presence of a flame-proof body and cover further improves its safety qualities. It also provides a thorough defence against both direct and indirect touch, making it a reliable and secure alternative for any application.
Our product is eco-friendly and economical because it takes energy conservation into account. It guarantees earthing protection against corrosion and offers protection against electric fires, ensuring longevity and durability.
The terminal safety shutters that come with this device provide a further measure of safety and security. These shutters are intended to prevent unintentional contact with live parts during installation. This product is a top pick for discerning consumers who value safety, dependability, and efficiency in their electrical effects due to these great qualities.
TECHNICAL SPECIFICATIONS.
| Standard Conformity | IS 12640 -1: 2000, IEC 61008-1 | |||
| Poles | DP & FP | |||
| Current Rating | 25A, 40A & 63A | |||
| Rated Voltage (Ue) | 240/ 415 V AC | |||
| Rated Sensitivity, mA | 30mA, 100mA & 300mA | |||
| Protection | Against earth fault / Leakage current | |||
| Rated Frequency (f) | 50 Hz | |||
| Nuisance Tripping | No | |||
| Operating Characteristic | ‘AC’ Type | |||
| Dielectric Strength | 2.5kV | |||
| Terminal Capacity | 35mm2 | |||
| Protection Class | IP20 | |||
| Safety Shutters | Optional | |||
| Breaking Capacity | 6 KA | |||
FAQs
1. How does an Axiom RCCB safeguard individuals and electrical installations?
It continuously monitors current flow and trips instantly when it detects an imbalance between the live and neutral wires to prevent shocks and electrical fires.
2. Which industry and safety manufacturing standards do Axiom RCCBs comply with?
Axiom RCCBs strictly conform to the established IS 12640 -1: 2000 and IEC 61008-1 reference standards.
3. What pole configurations are available in the Axiom RCCB product line?
The residual current circuit breakers are supplied in Double Pole (DP) and Four Pole (FP) configurations.
4. What rated sensitivity options are available for detecting earth faults?
They are available in three standard rated sensitivity levels: 30mA, 100mA, and 300mA.
5. What design features are included on the device for regular safety check-ups?
The breaker is explicitly designed with an integrated test button and a clear fault trip indicator for fast, frequent check-ups.
6. What are the available current ratings for Axiom Residual Current Circuit Breakers?
The available commercial current ratings for this product line are 25A, 40A, and 63A.
7. How do the optional terminal safety shutters enhance installation security?
The optional safety shutters prevent accidental human contact with live parts during the wiring and installation process.
8. What level of short-circuit breaking capacity do these RCCBs offer?
Axiom RCCBs possess a robust short-circuit breaking capacity rated at 6 KA.
