SALIENT FEATURES
- Protection of equipments against current as high as 10,000A
- Offers clear identification of faulty circuit with knob coming to mid position
- Prevents accidental contact with live parts
- The breathing channels are so profiled that the air circulates around individual pole, resulting in cooler operation
-
LOW WATT LOSS leading to ENERGY SAVING as the contacts are made of Silver Inlaid copper ensuring:
- Long Life
- Maximum Safety
- Low Contact Resistance
- Available due to safety purpose during maintenance.
OFF POSITION: For Personal Safety
ON POSITION: For extremely critical load Restriction - In the event of an over current or short circuit, the MCB automatically interrupts all the poles even if the MCB knob is held in ON position
-

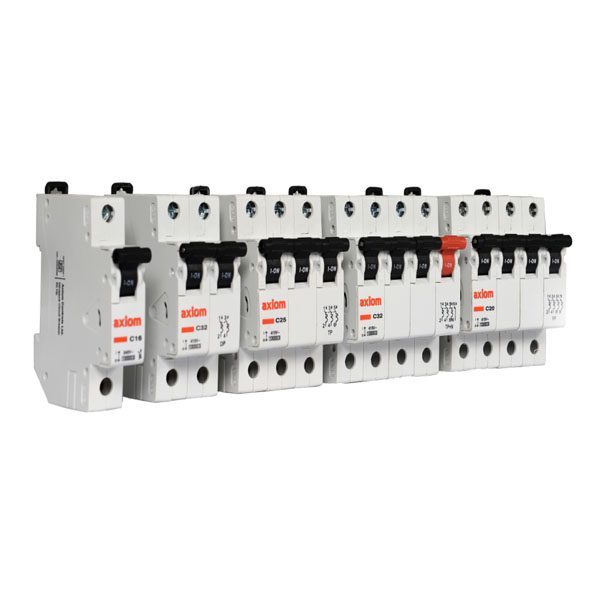

Axiom MCB is designed to allow minimum let through energy in case of fault. It operates with high-speed mechanism in which electrodynamic forces set up by the heavy current due to short-circuit, separate the contacts several times faster, before it could reach the peak volume, thus suppressing the high current.
TECHNICAL SPECIFICATIONS
| Standard Conformity | IS/IEC:60898-2015 | |||
| Standard Rated Current (In) | 6 – 63 A in B & C series for resistive loads and inductive loads respectively | |||
| Execution | Single Pole (SP), Single Pole & Neutral (SPN), Double Pole (DP),Triple Pole (TP), Triple Pole & Neutral (TPN), Four Pole (FP) |
|||
| Rated Voltage (Ue) | 240/415 Volts | |||
| Frequency | 50Hz | |||
| Rated Insulation Voltage (Ui) | 660 V~ | |||
| Ambient Temperature | -10 to 60° C | |||
| Trip Fault Indication | Mid Trip Feature | |||
| Terminal Capacity | 25mm2 | |||
| Energy Limit Class | Class 3 | |||
| Watt Loss | As per the IS/ IEC Standards | |||
| Rated Short Circuit Breaking Capacity (Icn) | 10,000A (10kA) | |||
